CMS Administrative Console is supported by the managing service Dr.Web CMS Web Console, which is controlled by another managing service – Dr.Web CMS.
Dr.Web CMS Web Console connects to the managing service via administration protocol.
To start CMS Administrative Console
To launch CMS Administrative Console (see Figure 15), open the following page in a browser:
https://<Exchange Server address>:2080/admin,
where <Exchange Server address> is the IP address of the Exchange server.
|
To access to the CMS Administrative Console page, you need to enter the administrator login and password. Administrator accounts can be added, edited or deleted by means of Dr.Web CMS Web Console. On the first launch of CMS Administrative Console use the login root and the password drweb of the default administrator account. |

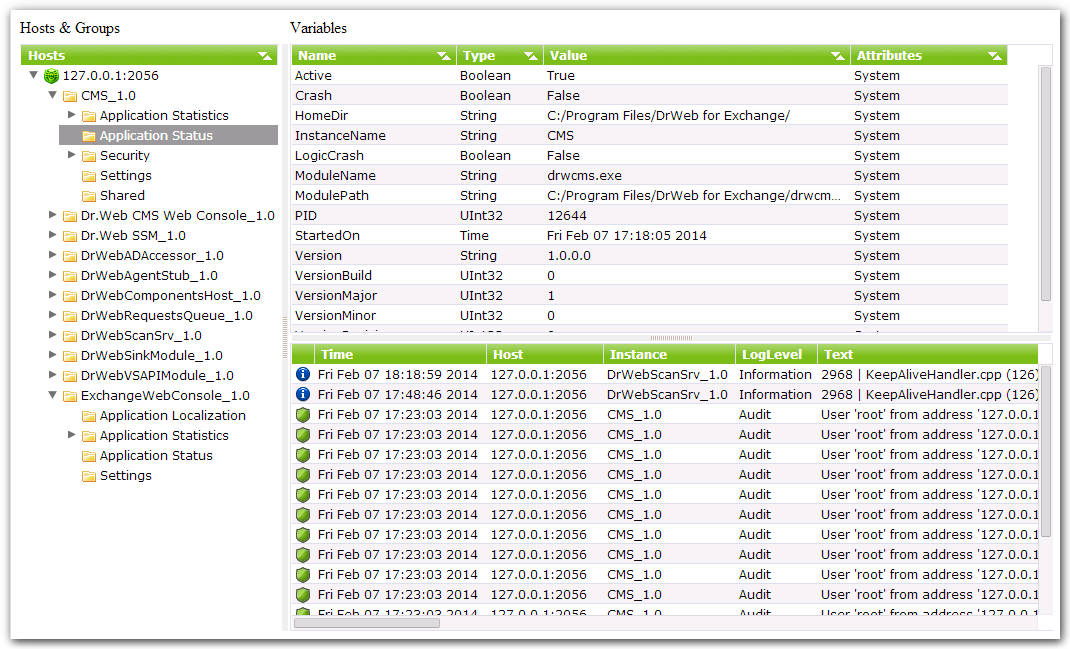

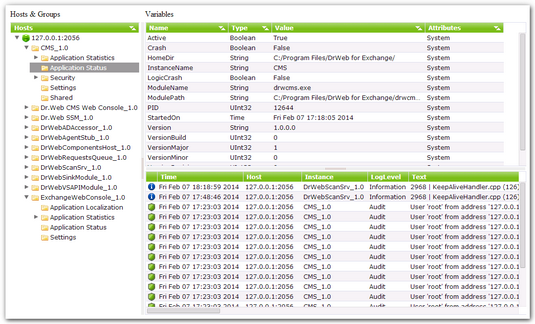

Figure 15. CMS Administrative Console
Interface
CMS Administrative Console consists of three parts:
| 1. | Hosts and groups tree. |
Displays all connected hosts. Click a group in the variables window to open the list of variables. Right-click a group to open a context menu, where you can select one of the following options:
| • | Create group |
| • | Rename group |
| • | Delete group |
| • | Create variable |
Right-click a host to open a context menu, where the following options are available in addition to listed above:
| • | Add host (adds a connection to a new host to the tree) |
| • | Delete host |
| • | Enable tracing mode (enables tracing in the real-time mode) |
| • | Load events (downloads events for the past periods) |
| • | Edit event filter (editing real-time trace filter) |
| 2. | Variables list. |
The variables window contains the list of variables for the selected group with their attributes and values. If allowed by the attributes, you can click any field to edit the value. Right-click a variable to open a context menu, where you can select one of the following options:
| • | Create variable (opens a window to create new variable) |
| • | Delete variable (if allowed by the attributes) |
| • | Reset statistics variable (if this variable has the Statistics attribute) |
| 3. | Messages tracing window. |
When real-time tracing is enabled, the application messages are displayed in the tracing window. You can set up a filter for the messages. Every message contains the following information:
| • | Event time |
| • | Host name |
| • | Application name |
| • | Logging level |
| • | Message text |
To empty the messages list, right-click the list and select the corresponding option in the context menu.
