Interface

Use the following interface elements to configure and manage Dr.Web:

gestures;

subpages;

pulley menu;

menu of available actions;

remorse pop-up;

app cover.

Gestures

To open the application, on Home page of your device, swipe from the bottom edge. In the App Grid, select Dr.Web.

If you want to minimize the app and go back to Home screen, in the open app, swipe from the left or right edge. Cover of Dr.Web will appear on Home screen.

Subpages

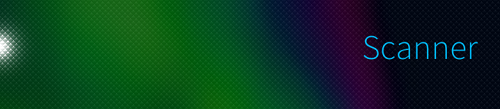

In Dr.Web, settings are grouped into subpages. The dot at the top left corner (see Figure 1) indicates that you are on a subpage. To go back to previous page, tap the dot.

<%ENLARGE_IMG%>

Figure 1. Back button

You can also return to the previous page by swiping from the left edge when you are on a subpage.

Pulley Menu

Pulley menu opens the menu of Dr.Web. It also allows to perform actions with the page you are currently on.

A highlighted line at the top indicates that a page contains pulley menu.

You can open pulley menu by doing the following:

with a fast motion, pull the screen down;

pull the screen down without lifting your finger.

To select a necessary option from pulley menu, use one of the motions:

With a fast motion, pull the screen down. Select the necessary menu option or tap button.

Pull the screen down without lifting your finger. Release when the necessary option is highlighted.

Menu of Available Actions

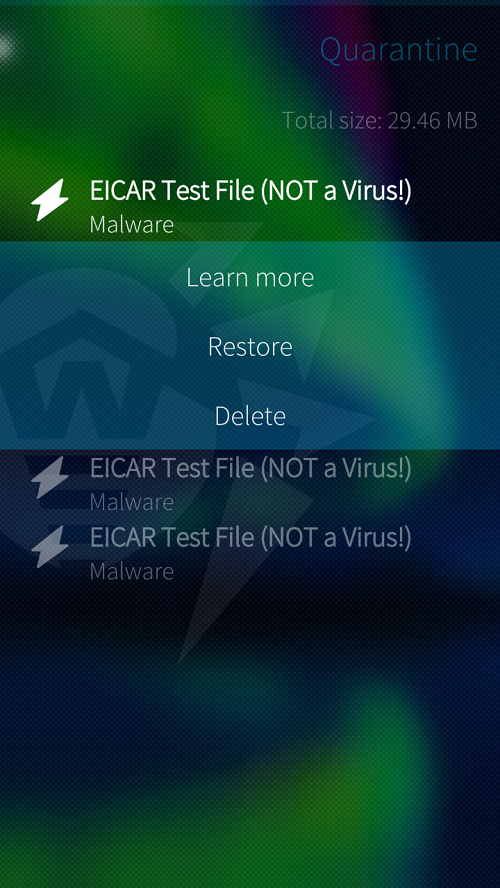

Menu of available actions opens list of available actions or additional information depending on the selected page element. For example, menu of available actions allows you to view list of available actions for detected threats (see Figure 2).

To open menu of available actions, long-press the necessary page element.

<%ENLARGE_IMG%>

Figure 2. Menu of available actions

Remorse Pop-up

Remorse pop-up (see Figure 3) appears at the top of page after an action is performed (for example, after clearing statistics). To cancel action, tap remorse pop-up.

<%ENLARGE_IMG%>

Figure 3. Remorse pop-up

Application Cover And Stopping Dr.Web

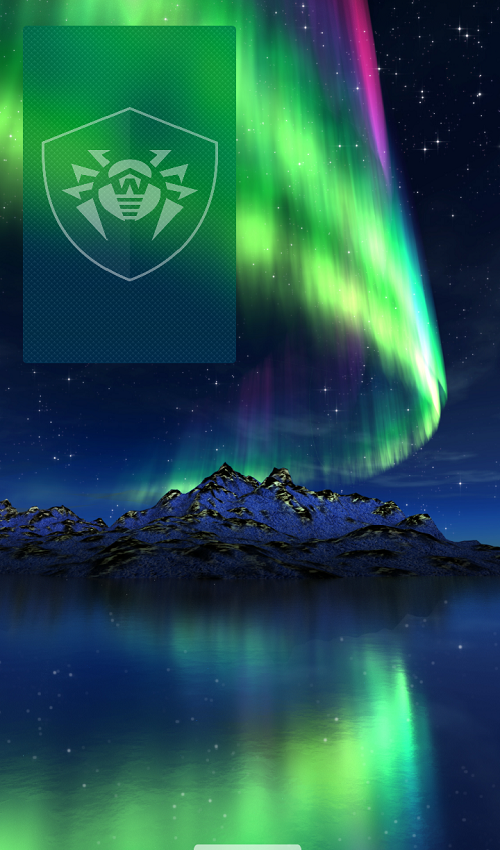

If you close Dr.Web by swiping from the left or right edge, application cover displays on Home page (see Figure 4). Tap the cover to open the app.

If you close the app while scanning, app cover on Home page displays scan progress.

<%ENLARGE_IMG%>

Figure 4. Application cover

To fully stop app operation and complete related processes, do one of the following:

In the open app, tap one of the top corners of the screen and pull down without lifting your finger.

Do the following:

1.In the open app, swipe from the left or right edge.

2.On Home page of your device, long-press Dr.Web cover until the icon close_app appears.

3.Tap the icon.

Main Page

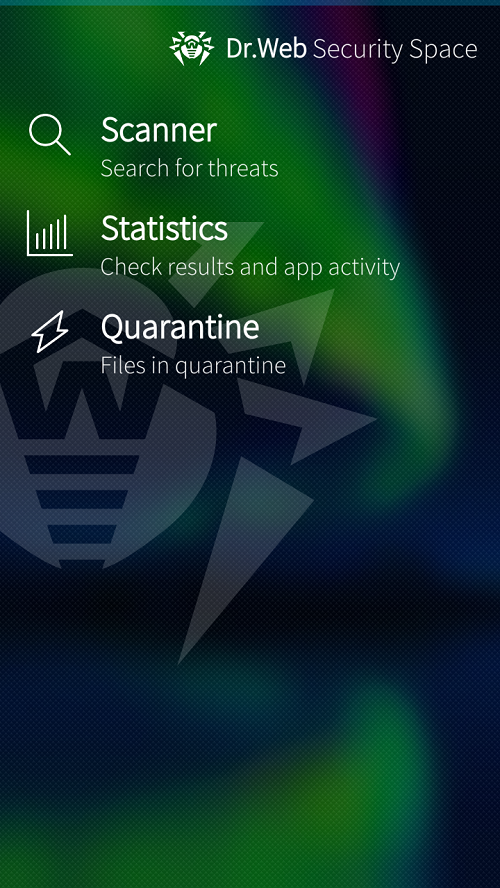

The main page (see Figure 5) contains the list of Dr.Web main components.

<%ENLARGE_IMG%>

Figure 5. Main page of the application

To access other Dr.Web features and settings, with a fast motion pull the main page down or pull the page down without lifting your finger.

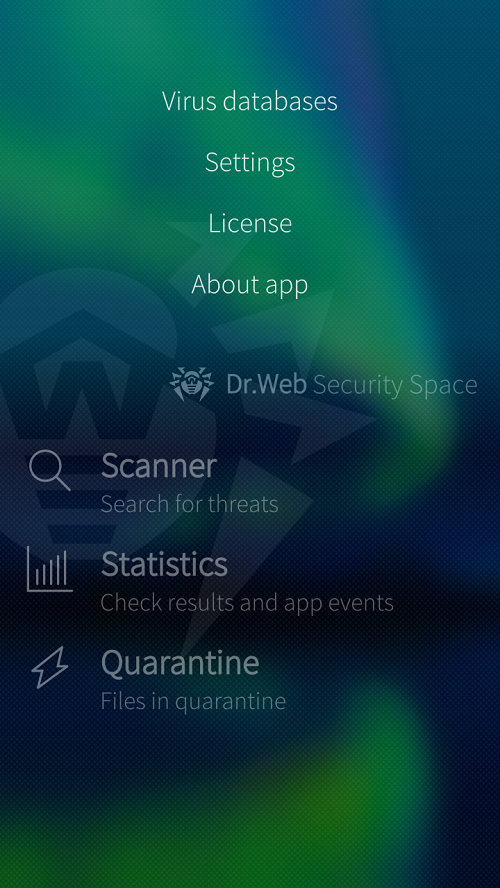

In the pulley menu, (see Figure 6) you can

update virus databases;

open application settings;

view license details;

open online help;

view information about the application.

<%ENLARGE_IMG%>

Figure 6. Application menu
