Filter Rules

To add or edit a rule

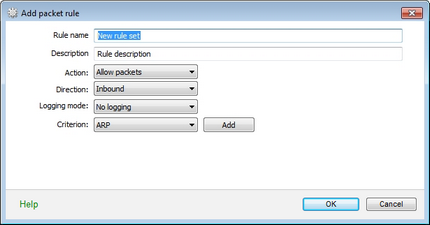

1.	In the packet filter rule set creation or modification window, click New or Edit. This opens a rule creation or rule modification window.

For details on a certain option, click a corresponding item in the picture.

2.	Configure the following parameters:

Parameter

Description

Rule name

The rule name.

Description

The rule description.

Action

The action for Dr.Web Firewall to perform when the packet is intercepted:

•	Block packets

•	Allow packets

Direction

The packet sender:

•	Inbound – apply the rule when packet is received from the network.

•	Outbound – apply the rule when packet is sent into the network from your computer.

•	Any – apply the rule regardless of packet transfer direction.

Logging mode

The logging mode for the rule. This parameter defines which information is stored in the Dr.Web Firewall log:

•	Log headers – log packet headers only.

•	Entire packet – log whole packets.

•	No logging – do not log any information.

Criterion

Filtering criterion. E.g. transport or network protocol. To add a filtering criterion, select a criterion from the list and click Add. You can add any number of filtering criteria. For some headers there are additional criteria available.

3.	When you finish adjusting the settings, click OK to save changes or Cancel to reject them.

If you do not add any criterion, then the rule will allow or block all packets depending on the Action field.

Example:

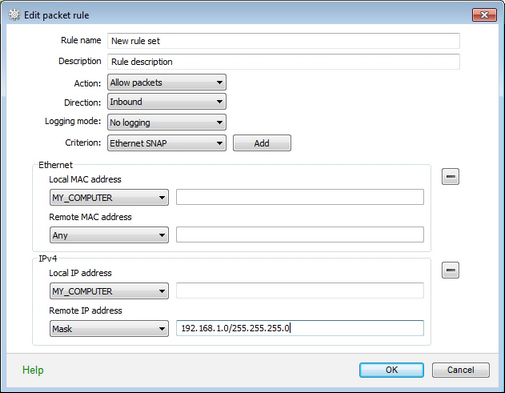

Adding a packet filter that allows all packets from a sub-network, may look as follows:

For details on a certain option, click a corresponding item in the picture.

If you select value Any for the Local IP address and Remote IP address fields, then the rule will be passed for any packet that contains an IPv4 header and was sent from a physical address of the local computer.
